Self-aligning roller bearing

Spherical roller bearings are self-aligning roller bearings. have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis.

Send Email Call Us
Introduction Industry Video Send Message

Introduction

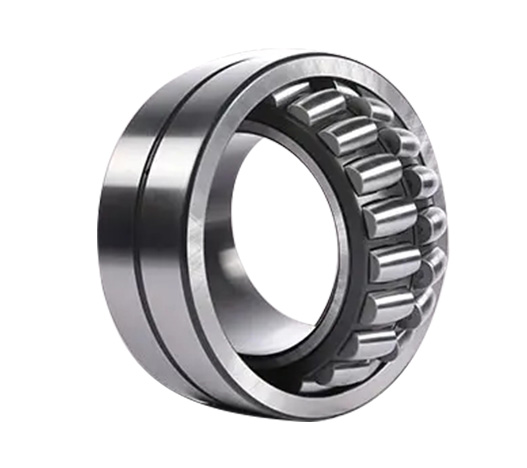

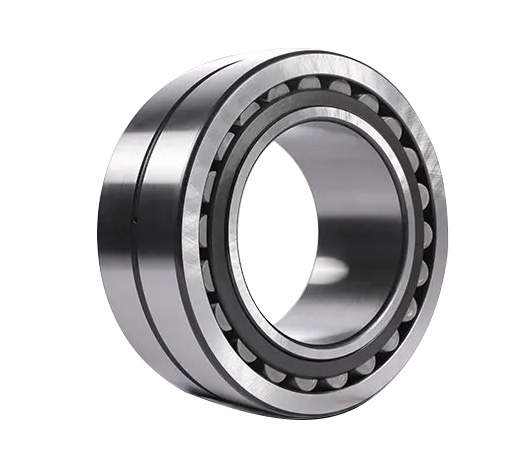

Spherical roller bearings are self-aligning roller bearings. have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis.

They are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. This ingenious structure enables it to have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing box seat on the error or the shaft bending, and is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to radial loads, the bearings can also withstand axial loads acting in both directions.

PRODUCT SPECIFICATION

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7

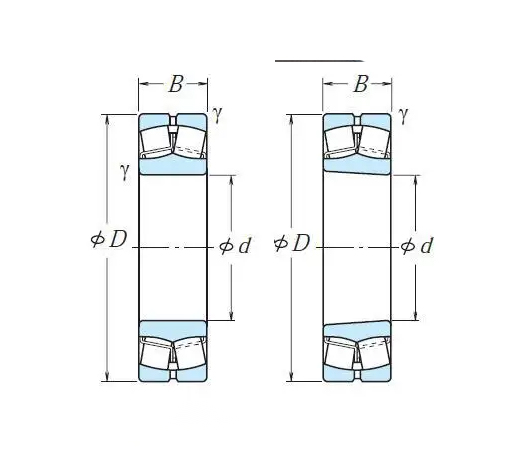

Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
22205CA 25 52 18 8000 10000 35.8 36.8 0.177
22205CAK 25 52 18 8000 10000 35.8 36.8 0.177
22206CA 30 62 20 6300 8000 50.5 55.1 030
22206CAK 30 62 20 6300 8000 50.5 55.1 029
22207CA 35 72 23 5600 7000 68.5 78.9 0.44
22207CAK 35 72 23 5600 7000 68.5 78.9 0.43
22208CA 40 80 23 5000 6000 77 88.4 052
22208CAK 40 80 23 5000 «XK) 77 88.4 051
22209CA 45 85 23 4500 5600 80.5 95.2 057
22209CAK 45 85 23 4500 5600 80.5 95.2 036
22210CA 50 90 23 4000 5000 83.7 102 0.61
22210CAK 50 90 23 4000 5000 83.7 102 0.60
22211CA 55 100 25 3600 4500 103 126 086
2221ICAK 55 100 25 3600 4500 103 126 0.846
222I2CA 60 110 28 3200 4000 123 154 1.152
222I2CAK 60 HO 28 3200 4000 123 154 1.127
222I3CA 65 120 31 2800 S600 151 194 1.561
22213CAK 65 120 31 2800 S600 151 194 1.528
22214CA 70 125 31 2600 3400 151 196 i.612
22214CAK 70 125 31 2600 3400 151 196 i.576
22215CA 75 130 31 2400 3200 162 215 1.692
22215CAK 75 130 31 2400 3200 162 215 1.655
22216CA 80 140 33 2200 3000 175 234 2.119
222I6CAK 80 140 33 2200 3000 175 2J4 2.137
22217CA 85 150 36 2000 2800 213 282 2.685
222I7CAK 85 150 36 2000 2800 213 282 2.627
22218CA 90 160 40 1900 2600 249 337 3.415
22218CAK 90 160 40 190() 2600 249 337 3.340
22219CA 95 170 43 1900 2600 283 390 4.178
22219CAK 95 170 43 1900 2600 283 390 4.086
2222OCA 100 180 46 1800 2400 3!6 435 5.011
2222OCAK 100 180 46 1800 2400 316 435 4.9
22222CA no 200 53 1700 2200 411 588 7.299
22222CAK HO 200 53 1700 2200 411 588 7.137
22224CA 120 215 58 1600 2000 479 691 9.074
22224CAK 120 215 58 1600 2000 479 691 8.862
Bearing NO. Principal dimensions Speed ratings（min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
22226CA 130 230 64 1400 1800 563 832 11.277
22226CAK 130 230 64 1400 1800 563 832 10.998
22228CA 140 250 68 1500 1700 639 954 14326
22228CAK 140 250 68 1500 1700 639 954 13.987
2223OCA 150 270 73 1300 1600 750 1131 18.168
2223OCAK 150 270 73 1300 1600 750 1131 17.749
22232CA 160 290 80 1200 1500 848 1294 23.201
22232CAK 160 290 80 1200 1500 848 1294 22.664
22234CA 170 310 86 1100 1400 974 1501 28.647
22234CAK 170 310 86 1100 1400 974 1501 27.987
22236CA ISO 320 86 1100 1300 1006 1592 29.927
22236CAK ISO 320 86 1100 1300 1006 1592 29.229
22238CA 190 J40 92 900 1200 1140 1740 36.3
22238CAK 190 J40 92 900 1200 1140 1740 35.6
22240CA 200 360 98 850 1100 1300 1990 44.756
22240CAK 200 360 98 850 1100 1300 1990 43.746
223O8CA 40 90 33 4300 5300 119 137 1.051
223O8CAK 40 90 33 4300 5300 119 137 1.019
223O9CA 45 100 36 3800 4800 143 169 1.426
223O9CAK 45 100 S6 3800 4800 143 169 1.383
22310CA 50 110 40 3400 4300 178 212 1.923
223IOCAK 50 110 40 3400 4300 178 212 i.865
22311CA 55 120 43 3000 3800 210 252 2.44
22311CAK 55 120 43 3000 3800 210 252 2.367
223I2CA 60 130 46 2800 3600 242 292 3.025
223I2CAK 60 130 46 2800 3600 242 292 2.933
223I3CA 65 140 48 2400 3200 264 321 3.55!
223I3CAK 65 140 48 2400 3200 264 321 3.444
22314CA 70 150 51 2200 3000 313 396 4.373
22314CAK 70 150 51 2200 3000 313 396 4.245
2231SCA 75 160 55 2000 2800 348 447 5.45
223I5CAK 75 160 55 2000 2800 348 447 5.289
22316CA 80 170 58 1900 2600 392 507 6.452
223I6CAK 80 170 58 1900 2600 392 507 6.261
223I7CA 85 180 60 ISOO 2400 429 555 7.471
223I7CAK 85 180 «) 1800 2400 429 555 7.256
Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
22318CA 90 190 64 1800 2400 483 639 8376
22318CAK 90 190 64 1800 2400 483 639 8.619
22319CA 95 200 67 1700 2200 531 705 1036
22319CAK 95 200 67 1700 2200 531 705 10.07
2232OCA 100 215 73 1400 1800 617 833 13.306
22320CAK 100 215 73 1400 1800 617 833 12.932
22322CA 110 240 80 1500 1900 7t4 968 18.252
22322CAK 110 240 80 1500 1900 714 968 17.754
22324CA 120 260 86 1300 1700 844 1157 23.042
22324CAK 120 260 86 1300 1700 844 1157 22.419
22326CA 130 280 93 1200 1600 965 IS41 28.72
22326CAK 130 280 93 1200 1600 965 1341 27.93
22328CA 140 300 102 1100 1500 1133 1614 36.203
22328CAK 140 300 102 1100 1500 1133 1614 35.182
22330CA 150 320 108 1200 1500 1271 IS48 43.923
22330CAK 150 320 108 1200 1500 1271 1848 42.679
22332CA 160 340 114 950 1300 1400 1950 51
22332CAK 160 340 114 950 1300 1400 1950 51.3
22334CA 170 S60 120 900 1200 155() 2200 56
22334CAK 170 S60 120 900 1200 1550 2200 55.8
22336CA 180 380 126 850 1100 1710 2400 72.6
22336CAK 180 380 126 850 1100 1710 2400 71.4
22338CA 190 400 132 850 1100 1870 2670 79
22338CAK 190 400 132 850 1100 1870 2670 78
22340CA 200 420 138 800 1000 2080 3000 97.9
22340CAK 200 420 138 800 1000 2080 3000 95.9
23020CA 100 150 37 1400 1800 206 325 2.36
23020CAK 100 150 37 1400 18()0 206 325 2.36
23022CA 110 170 45 1400 1800 270 448 3.76
23022CAK 110 170 45 1400 1800 270 448 3.65
23024CA 120 180 46 1400 1800 295 495 4.25
23024CAK 120 180 46 1400 1800 295 495 4.12
23026CA 130 200 52 1200 1600 372 625 6.11
23026CAK 130 200 52 1200 1600 372 625 5.9
23028CA 140 210 53 1100 1500 402 6% 6.61
23028CAK 140 210 53 1100 1500 402 698 6.41
Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
23O3OCA 150 225 56 1100 I4(X) 438 762 8.06
23O3OCAK 150 225 56 1100 1400 438 762 7.95
23O32CA 160 240 60 1000 1300 500 875 9.83
23O32CAK 160 240 60 1(X)0 1300 500 875 9.53
23034CA 170 260 67 900 1200 608 1080 13.4
23034CAK 170 260 67 900 1200 608 1080 13
23036CA 180 280 74 800 1000 710 1260 17.6
23O36CAK 180 280 74 800 1000 7)0 1260 16.7
23O38CA 190 290 75 800 1000 745 1350 18.6
23O38CAK 190 290 75 800 1000 745 1350 18
23WOCA 200 310 82 1000 1300 890 1650 23.9
23O4OCAK 200 310 82 1000 1300 890 1650 23.2
23O44CA 220 340 90 950 1200 1060 1990 31.6
23Q48CA 240 360 92 85() 110() 1130 2160 352
2312OCA 100 165 52 1600 2000 320 505 4.42
2312OCAK 100 165 52 1600 2000 320 505 4.23
23122CA 110 180 56 1300 1700 375 595 5.57
23I22CAK 110 180 56 1300 1700 375 595 5.47
23124CA 120 200 62 1300 1700 450 715 7.77
23I24CAK 120 200 62 1300 1700 450 715 7.53
23126CA 130 210 64 1300 1700 478 788 9.55
23126CAK 130 210 64 1300 1700 478 788 9.27
23128CA 140 225 68 ll(X) I5(X) 545 925 10.5
23128CAK 140 225 68 1100 I5(X) 545 925 10.2
23I3OCA 150 250 80 1000 1300 725 1230 16.4
2313OCAK 150 250 80 1000 1300 725 1230 15.9
23132CA 160 270 86 900 1200 845 1420 21
23I32CAK 160 270 86 900 1200 845 1420 20.4
231 MCA 170 280 88 850 1100 885 1520 22.5
231MCAK 170 280 88 850 1100 885 1520 21.8
23136CA 180 300 96 800 1000 1030 1800 28
23136CAK 180 300 96 800 1000 1030 180() 27
23I38CA 190 320 104 850 1100 1200 2120 34.6
23138CAK 190 320 104 850 1100 1200 2120 335
2314OCA 200 340 112 800 1000 1380 2460 43.8
23I40CAK 200 340 112 800 1000 1380 2460 42.5
Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
23I44CA 220 370 120 7(X) 950 1570 2820 545
23148CA 240 400 128 670 850 1790 3220 655
23218CA 90 160 52.4 1700 2200 325 478 4.66
23218CAK 90 160 52.4 1700 2200 325 478 4.56
2322OCA 100 180 60.3 1600 2000 415 618 6.58
2322OCAK 100 180 60.3 1600 2000 415 618 6.39
23222CA 110 200 69.8 1400 1800 515 785 10.1
23222CAK 110 200 69.8 1400 1800 515 785 10
23224CA 120 215 76 1300 1700 602 940 123
23224CAK 120 215 76 1300 1700 602 940 11.9
23226CA 130 230 80 1200 1600 668 1060 145
23226CAK 130 230 80 120() 1600 668 1060 14.1
23228CA 140 250 88 1000 1400 802 1280 192
23228CAK 140 250 88 1000 1400 802 1280 19
2323OCA 150 270 96 950 1300 935 1520 24.9
2323OCAK 150 270 96 950 1300 935 1520 243
23232CA 160 290 104 900 1200 1080 1760 29.9
23232CAK 160 290 IM 900 1200 1080 1760 29.7
23234CA 170 310 no 90() 1200 1200 2030 38
23234CAK 170 310 no 900 1200 1200 2030 37
23236CA 180 320 112 85() 1100 1280 2170 40.7
23236CAK 180 320 112 85() ll(M) 12H0 2170 403
23238CA 190 340 120 800 1)00 !45O 2490 473
23238CAK 190 340 120 800 1100 1450 2490 46.1
2324OCA 200 360 128 750 1000 1610 2790 53.4
2324OCAK 200 360 128 750 1000 1610 2790 S2£
24024CA 120 180 60 1500 2000 380 675 5.3
24024CAK 120 180 60 1500 2000 380 675 5.3
24026CA 130 200 69 1400 1800 472 852 8
24O26CAK 130 200 69 1400 1800 472 852 8
24O28CA 140 210 69 1300 170() 488 895 8.5
24O28CAK 140 210 69 1300 1700 488 895 8.5
24O3OCA 150 225 75 1200 1500 570 1070 9.8
24030CAK 150 225 75 1200 1500 570 1070 9.8
24O32CA 160 240 80 1100 1400 652 1230 132
24O32CAK 160 240 80 1100 1400 652 1230 132
Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
24034CA 170 260 90 1000 1300 792 1520 17.8
24034CAK 170 260 90 1000 1300 792 1520 17.8
24036CA ISO 280 100 950 1200 928 1820 22.7
24036CAK 180 280 100 950 1200 928 1820 22.7
24O38CA 190 290 100 900 1200 975 1910 24
24O38CAK 190 290 100 900 1200 975 1910 24
24O4OCA 200 310 109 850 1100 1120 2220 31.3
24O4OCAK 200 310 109 850 1100 1120 2220 31.3
24122CA 110 180 69 1600 2000 458 775 6.9
24I22CAK 110 180 69 1600 2000 458 775 6.9
24I24CA 120 200 80 1400 )800 575 998 10.6
24124CAK 120 200 80 1400 1800 575 998 10.6
24126CA 130 210 80 130() 1700 585 1030 11.1
24126CAK 130 210 80 1300 1700 585 1030 11.1
24128CA 140 225 85 1200 1600 670 1200 13
24128CAK 140 225 85 1200 1600 670 1200 13
24I3OCA 150 250 100 1100 1400 890 1600 19.4
24I3OCAK 150 250 100 1100 1400 890 1600 19.4
24I32CA 160 270 109 1000 1300 1040 1880 25
24132CAK 160 270 109 1000 1300 1()40 1880 25
24134CA 170 280 109 1000 1300 1070 1930 24.8
24134CAK 170 280 109 1000 1300 1070 1930 24.8
24136CA 180 300 118 900 1200 1210 2220 32.8
24136CAK 180 300 118 900 1200 1210 2220 32.8
24I38CA 190 320 128 850 1100 1410 2590 41
24I38CAK 190 320 128 850 1100 1410 2590 41
24I40CA 200 340 140 800 1000 1580 2950 42.5
24140CAK 200 340 140 800 1000 1580 2950 42
21304CA 20 52 15 6000 7500 30.8 31.2 0.175
21304CAK 20 52 15 6000 7500 30.8 31.2 0.175
213O5CA 25 62 17 5300 6700 41.5 44.2 0.265
2I3O5CAK 25 62 17 5300 6700 41.5 44.2 0.265
213O6CA 30 72 19 4500 6000 55.8 62 0.405
2I306CAK 30 72 19 4500 6000 55.8 62 0.405
2I3O7CA 35 80 21 4000 5300 63.5 73.2 053
2I3O7CAK 35 80 21 4000 5300 63.5 73.2 0.43
Bearing NO. Principal dimensions Speed ratings（r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
2I308CA 40 90 23 3600 4500 85 96.2 0.72
21308CAK 40 90 23 3600 4500 85 962 0.62
21309CA 45 100 25 3200 400() 100 115 1
213O9CAK 45 100 25 3200 400() 100 115 0.9
21310CA 50 110 27 2800 3800 120 140 1275
21310CAK 50 110 27 2800 3800 120 140 1.175
21311CA 55 120 29 2600 MOO 142 170 1.625
21311CAK 55 120 29 2600 5400 142 170 1525
2I3I2CA 60 130 31 2400 3200 162 195 2.2
21312CAK 60 130 31 2400 3200 162 195 2.1
21313CA 65 140 33 2200 3000 182 228 2.6
21313CAK 65 140 33 2200 3000 182 228 2.5
21314CA 70 150 35 2000 2800 212 268 3
213I4CAK 70 150 35 2000 2800 212 268 2.9
213I5CA 75 160 37 1900 2600 238 302 3.6
2I3I5CAK 75 160 37 1900 2600 238 302 3.5
2I3I6CA 80 170 39 1800 2400 260 332 4.47
213I6CAK 80 170 39 1800 2400 260 332 4.2
2B17CA 85 180 41 1700 2200 298 385 5
21317CAK 85 180 41 1700 2200 298 385 4.8
21318CA 90 190 43 1600 2200 320 420 5.8
213I8CAK 90 190 43 1600 2200 320 420 5.6
213I9CA 95 200 45 1700 2200 355 485 7.2
2I3I9CAK 95 200 45 1700 2200 355 485 7
21320CA 100 215 47 1600 2000 385 530 8.8
21320CAK 10() 215 47 1600 2000 385 530 8.6
21322CA 110 240 50 1400 1800 460 635 \\X
21322CAK 110 240 50 1400 1800 460 635 11.6

send message

    • *

    • *

    Related Products

    Contact us

      Please prove you are human by selecting the house.

      Home Tel Mail Inquiry
