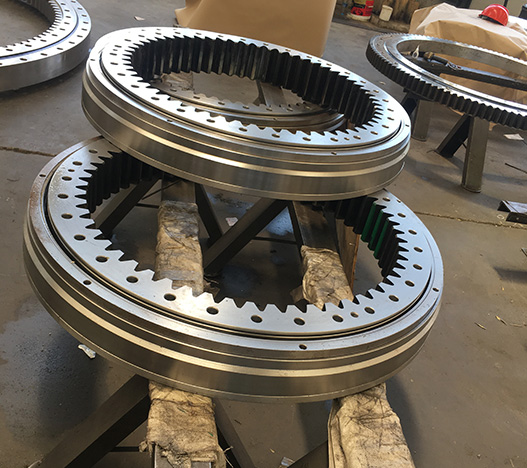

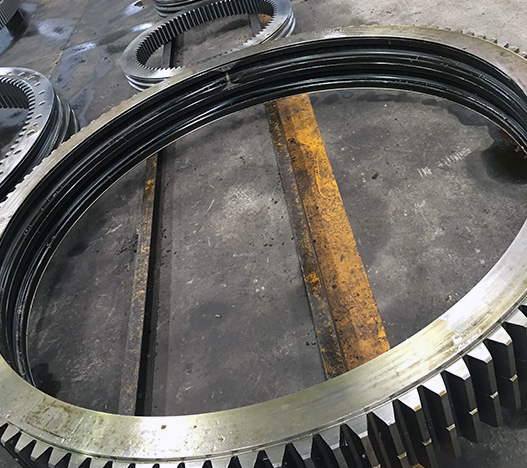

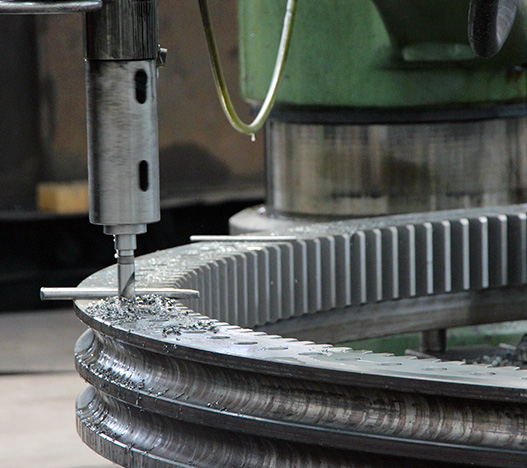

Double row ball slewing bearing

The double row ball slewing bearing has three seat rings , the steel ball and the spaces can be directly arranged into the upper and lower races. Two rows of steel balls are fitted according to the force born . Open mode fitting is extraordinary convenient .The load angles of both upper and lower race are 90°,which enable to bear large axial force and the tilting moment.

Send Email Call Us

Introduction Industry Video Send Message

Introduction

As the axial and radial dimension of the double row ball slewing bearing are rather large , structural is tightening and can support high static loads. They are mainly used in situations with variational load position and direction and continuously rotating . Especially suitable for tower cranes which require working radius over medium range , mobile crane and loading and unloading machinery .

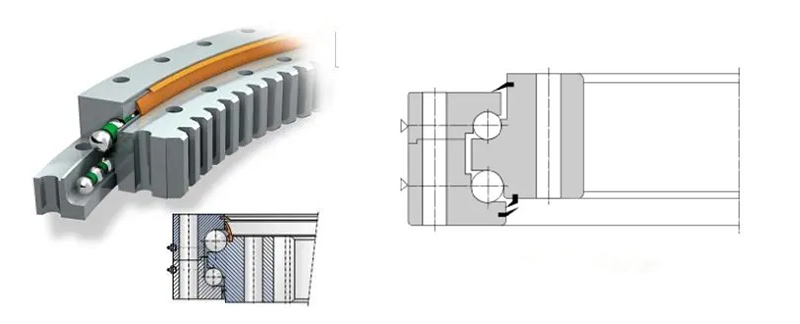

Different dia PRODUCT SPECIFICATION

Model			Boundary dimensions(mm)			Bolt hole diameter(mm)			Gear parameters(mm)							Weight
Non-gear	External gear	Internal gear	D	d	H	D1	D2	n	m	Da Z		da Z		b	X	kg
020-25-500	021-25-500	023-25-500	616	384	106	580	420	20	5	645	126	355	72	60	0.5	100
	022-25-500	024-25-500	616	384	106	580	420	20	6	648	105	348	59	60	0.5	100
020-25-560	021-25-560	023-25-560	676	444	106	640	480	20	5	705	138	415	84	60	0.5	115
	022-25-560	024-25-560	676	444	106	640	480	20	6	708	115	408	69	60	0.5	115
020-25-630	021-25-630	023-25-630	746	514	106	710	550	24	6	792	129	480	81	60	0.5	130
	022-25-630	024-25-630	746	514	106	710	550	24	8	792	96	472	60	60	0.5	130
020-25-710	021-25-710	023-25-710	826	594	106	790	630	24	6	864	141	558	94	60	0.5	140
	022-25-710	024-25-710	826	594	106	790	630	24	8	864	105	552	70	60	0.5	140
020-30-800	021-30-800	023-30-800	942	658	124	898	702	30	8	984	120	616	78	80	0.5	200
	022-30-800	024-30-800	942	658	124	898	702	30	10	990	96	610	62	80	0.5	200
020-30-900	021-30-900	023-30-900	1042	758	124	998	802	30	8	1088	133	712	90	80	0.5	250
	022-30-900	024-30-900	1042	758	124	998	802	30	10	1090	106	710	72	80	0.5	250
020-30-1000	021-30-1000	023-30-1000	1142	858	124	1098	902	36	10	1200	117	810	82	80	0.5	300
	022-30-1000	024-30-1000	1142	858	124	1098	902	36	12	1200	97	792	67	80	0.5	300
020-30-1120	021-30-1120	023-30-1120	1262	978	124	1218	1022	36	10	1320	129	920	93	80	0.5	340
	022-30-1120	024-30-1120	1262	978	124	1218	1022	36	12	1320	107	912	77	80	0.5	340
020-40-1250	021-40-1250	023-40-1250	1426	1074	160	1374	1126	40	12	1500	122	1008	85	90	0.5	580
	022-40-1250	024-40-1250	1426	1074	160	1374	1126	40	14	1498	104	1008	73	90	0.5	580
020-40-1400	021-40-1400	023-40-1400	1576	1224	160	1524	1272	40	12	1644	134	1152	97	90	0.5	650
	022-40-1400	024-40-1400	1576	1224	160	1524	1272	40	14	1652	115	1148	83	90	0.5	650
020-40-1600	021-40-1600	023-40-1600	1776	1424	160	1724	1476	45	14	1848	129	1344	97	90	0.5	750
	022-40-1600	024-40-1600	1776	1424	160	1724	1476	45	16	1856	113	1344	85	90	0.5	750
020-40-1800	021-40-1800	023-40-1800	1976	1624	160	1924	1676	45	14	2058	144	1540	111	90	0.5	820
	022-40-1800	024-40-1800	1976	1624	160	1924	1676	45	16	2064	126	1536	97	90	0.5	820
020-50-2000	021-50-2000	023-50-2000	2215	1785	190	2149	1851	48	16	2304	141	1696	107	120	0.5	1150
	022-50-2000	024-50-2000	2215	1785	190	2149	1851	48	18	2304	125	1692	95	120	0.5	1150
020-50-2240	021-50-2240	023-50-2240	2455	2025	190	2389	2091	48	16	2544	156	1936	122	120	0.5	1500
	022-50-2240	024-50-2240	2455	2025	190	2389	2091	48	18	2556	139	1926	108	120	0.5	1500
020-50-2500	021-50-2500	023-50-2500	2715	2285	190	2649	2351	56	18	2804	153	2196	123	120	0.5	1500
	022-50-2500	024-50-2500	2715	2285	190	2649	2351	56	20	2820	138	2180	110	120	0.5	1500
020-50-2800	021-50-2800	023-50-2800	3015	2585	190	2949	2651	56	18	3114	170	2484	139	120	0.5	1900
	022-50-2800	024-50-2800	3015	2585	190	2949	2651	56	20	3120	153	2480	125	120	0.5	1900
020-60-3150	021-60-3150	023-60-3150	3428	2872	226	3338	2962	56	20	3540	174	2760	139	150	0.5	3300
	022-60-3150	024-60-3150	3428	2872	226	3338	2962	56	22	3542	158	2750	126	150	0.5	3300
020-60-3550	021-60-3550	023-60-3550	3828	3272	226	3738	3362	56	20	3940	194	3160	159	150	0.5	3700
	022-60-3550	024-60-3550	3828	3272	226	3738	3362	56	22	3938	176	3168	145	150	0.5	3700
020-60-4000	021-60-4000	023-60-4000	4278	3722	226	4188	3812	60	22	4400	197	3608	165	150	0.5	4200
	022-60-4000	024-60-4000	4278	3722	226	4188	3812	60	25	4400	173	3600	145	150	0.5	4200
020-60-4500	021-60-4500	023-60-4500	4778	4222	226	4688	4312	60	22	4884	219	4114	188	150	0.5	4700
	022-60-4500	024-60-4500	4778	4222	226	4688	4312	60	25	4900	193	4100	165	150	0.5	4700

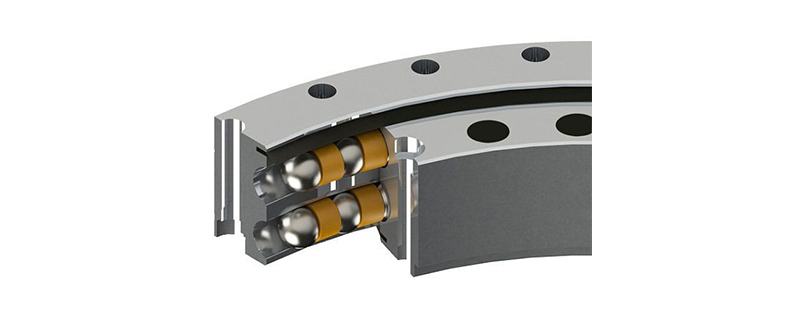

Same dia PRODUCT SPECIFICATION

Designations		Gear parameters		External gear parameters		Internal gear parameters		Weight (kg)
External gear	Internal gear	b	m	da	Z	da	Z	Weight (kg)
031.25.560	033.25.560	60	5	704	138	417	84	156
032.25.560	034.25.560	60	6	706.8	115	410.4	69
031.25.630	033.25.630	60	6	790.8	129	482.4	81	175
032.25.630	034.25.630	60	8	790.4	96	475.2	60
031.25.710	033.25.710	60	6	862.8	141	560.4	94	198
032.25.710	034.25.710	60	8	862.4	105	555.2	70
031.30.800	033.30.800	80	8	982.4	120	619.2	78	324
032.30.900	034.30.900	80	10	1088	106	714	72
031.30.1000	033.30.1000	80	10	1198	117	814	82	405
032.30.1000	034.30.1000	80	12	1197.6	97	796.8	67
031.30.1120	033.30.1120	80	10	1318	129	924	93	455
032.30.1120	034.30.1120	80	12	1317.6	107	916.8	77
031.40.1250	033.40.1250	90	12	1497.6	122	1012.8	85	837
032.40.1250	034.40.1250	90	14	1495.2	104	1013.6	73
031.40.1400	033.40.1400	90	12	1641.6	134	1156.8	97	940
032.40.1400	034.40.1400	90	14	1649.2	115	1153.6	83
031.40.1600	033.40.1600	90	14	1845.2	129	1349.6	97	1075
032.40.1600	034.40.1600	90	16	1852.8	113	1350.4	85
031.40.1800	033.40.1800	90	14	2055.2	144	1545.6	111	1213
032.40.1800	034.40.1800	90	16	2060.8	126	1542.4	97
031.50.200	033.50.2000	120	16	2300.8	141	1702.4	107	1921
032.50.2000	034.50.2000	120	18	2300.4	125	1699.32	95
031.50.2240	033.50.2240	120	16	2540.8	156	1942.4	122	2159
032.50.2240	034.50.2240	120	18	2552.4	139	1933.2	108
031.50.2500	033.50.2500	120	18	2804.4	153	2203.2	123	2406
032.50.2500	034.50.2500	120	20	2816	138	2188	110
031.50.2800	033.50.2800	120	18	3110.4	170	2491.2	139	3221
032.50.2800	034.50.2800	120	20	3116	153	2488	125
031.60.3150	033.60.3150	150	20	3536	174	2768	139	4652
032.60.3150	034.60.3150	150	22	3537.6	158	2758.8	126
031.60.3550	033.60.3550	150	20	3936	194	3168	159	5262
032.60.3550	034.60.3550	150	22	3933.6	176	3176.8	145
031.60.4000	033.60.4000	150	22	4395.6	197	3616.8	165	5938
032.60.4000	034.60.4000	150	25	4395	173	3610	145

Non-geartype PRODUCT SPECIFICATION

Designations	Dimension (mm)
Non-geartype	D	d	T	H	h	D1	d1	dn	n	n1
030.25.560	676	444	110	100	26	640	480	18	20	4
030.25.560	676	444	110	100	26	640	480	18	20	4
030.25.630	746	514	110	100	26	710	550	18	24	4
030.25.630	746	514	110	100	26	710	550	18	24	4
030.25.710	826	594	110	100	26	790	630	18	24	4
030.25.710	826	594	110	100	26	790	630	18	24	4
030.30.800	942	658	130	120	29	898	702	22	30	6
030.30.800	942	658	130	120	29	898	702	22	30	6
030.30.900	1042	758	130	120	29	998	802	22	30	6
030.30.900	1042	758	130	120	29	998	802	22	30	6
030.30.1000	1142	858	130	120	29	1098	902	22	36	6
030.30.1000	1142	858	130	120	29	1098	902	22	36	6
030.30.1120	1262	978	130	120	29	1218	1022	22	36	6
030.30.1120	1262	978	130	120	29	1218	1022	22	36	6
030.40.1250	1426	1074	170	160	39	1374	1126	26	40	5
030.40.1250	1426	1074	170	160	39	1374	1126	26	40	5
030.40.1400	1576	1224	170	160	39	1524	1272	26	40	5
030.40.1400	1576	1224	170	160	39	1524	1272	26	40	5
030.40.1600	1776	1424	170	160	39	1724	1476	26	45	5
030.40.1600	1776	1424	170	160	39	1724	1476	26	45	5
030.40.1800	1976	1624	170	160	39	1924	1676	26	45	5
030.40.1800	1976	1624	170	160	39	1924	1676	26	45	5
030.50.2000	2215	1785	200	188	47	2149	1851	33	48	8
030.50.2000	2215	1785	200	188	47	2149	1851	33	48	8
030.50.2240	2455	2025	200	188	47	2389	2091	33	48	8
030.50.2240	2455	2025	200	188	47	2389	2091	33	48	8
030.50.2500	2715	2285	200	188	47	2649	2351	33	56	8
030.50.2500	2715	2285	200	188	47	2649	2351	33	56	8
030.50.2800	3015	2585	200	224	47	2949	2651	33	56	8
030.50.2800	3015	2585	200	224	47	2949	2651	33	56	8
030.60.3150	3428	2872	240	224	56	3338	2962	45	56	8
030.60.3150	3428	2872	240	224	56	3338	2962	45	56	8
030.60.3550	3828	3272	240	224	56	3738	3362	45	56	8
030.60.3550	3828	3272	240	224	56	3738	3362	45	56	8
030.60.4000	4278	3722	240	224	56	4188	3812	45	60	8
030.60.4000	4278	3722	240	224	56	4188	3812	45	60	8
